SETUP OF VIRTUAL MACHINE ON DATABASE ZONE

On database zone, there is only one virtual machine which is window server 2016. This virtual machine is going to be setup in NUC2.


Click create a new virtual machine

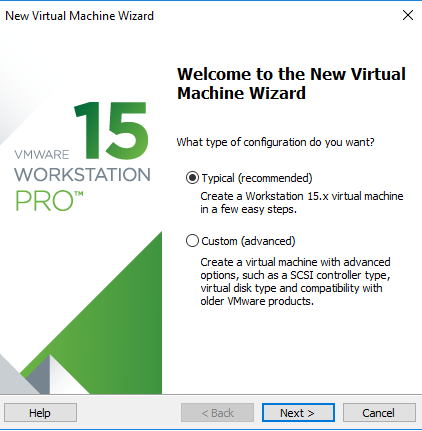

Tick typical and click next


Tick I will restart the operating system later and click next

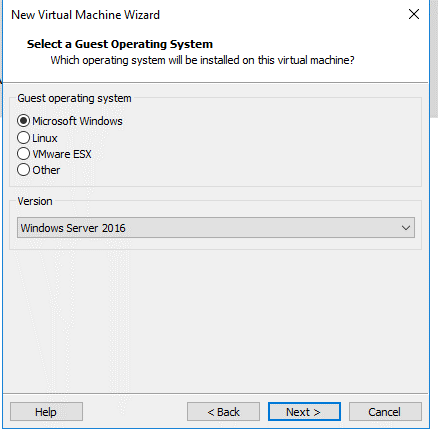

Tick Microsoft windows as guest operating system, tick window server 2016 as version then click next

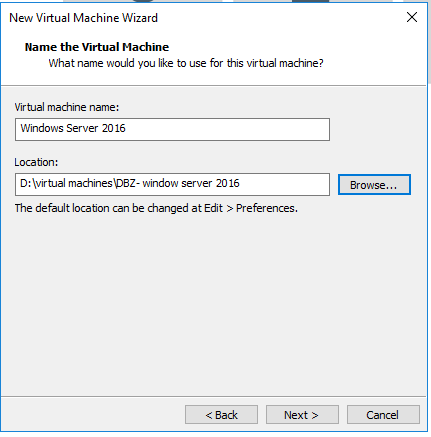

Rename this virtual machine, click browse to select or create a location to store the virtual machine then click next

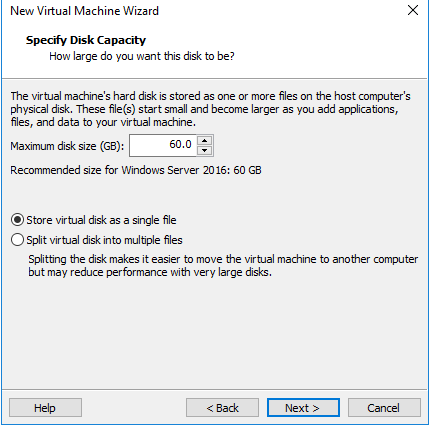

Key in 60GB as disk size, tick store virtual disk as a single file ten click next


Click customize hardware


Change RAM to 2GB (2048MB) then click ok

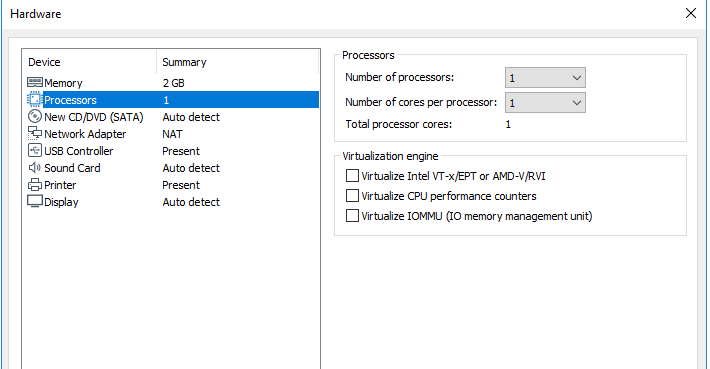

Change number of processor and cores per processor to 1

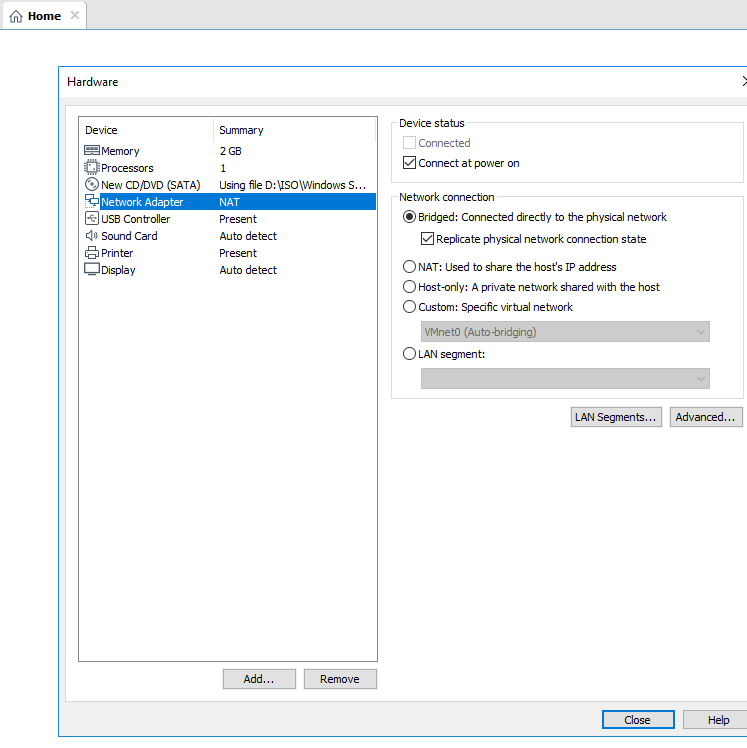

Click bridged as network adapter, tick replicate physical network connection state then click close

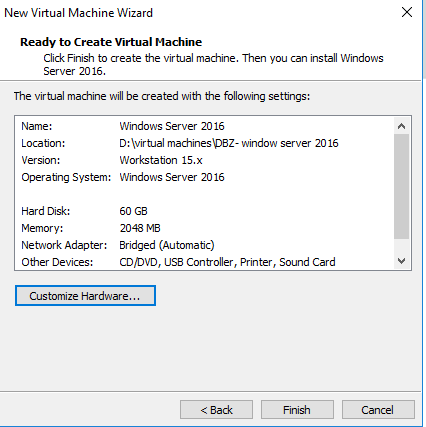

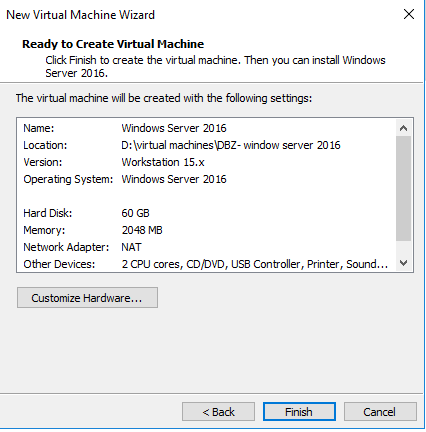

Click finish

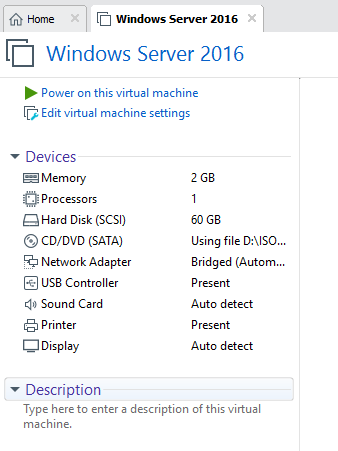

Click power on this virtual machine


Click power on this virtual machine

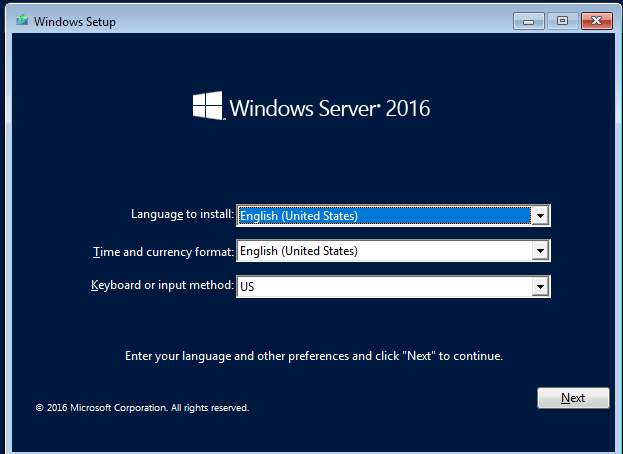

Click next

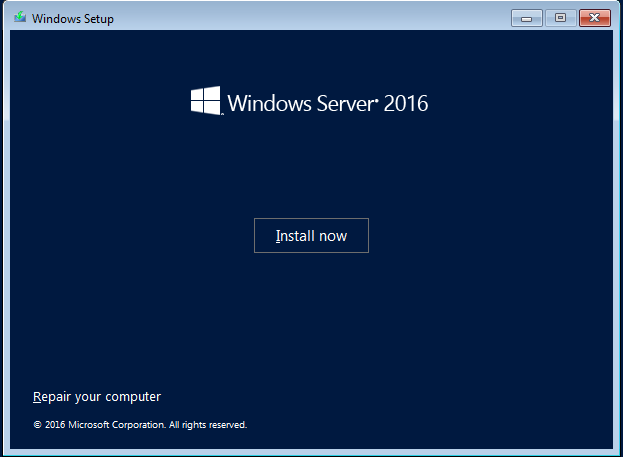

Click install now

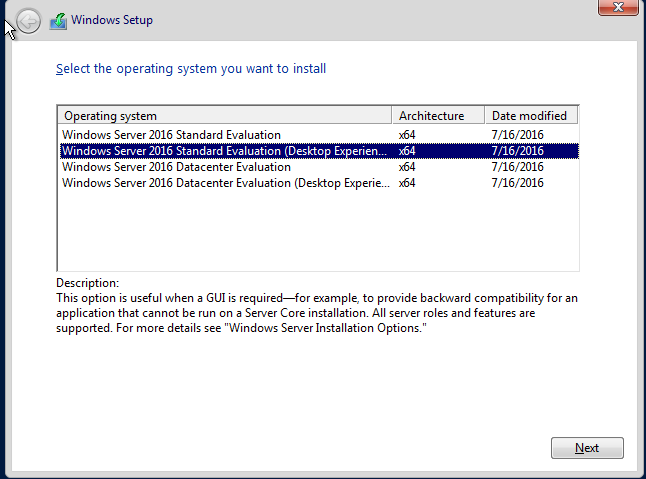

Choose window server 2016 standard evaluation (desktop experience) then click next

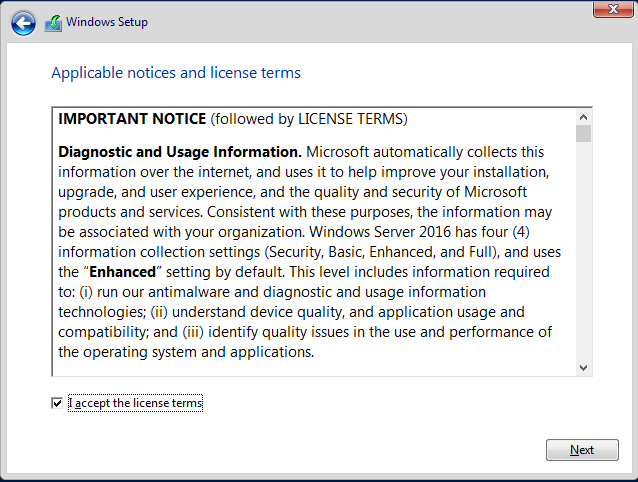

Tick I accept the license terms then click next

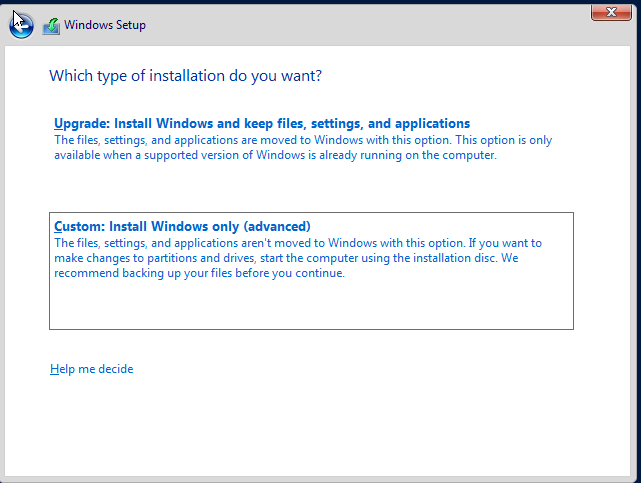

Click custom

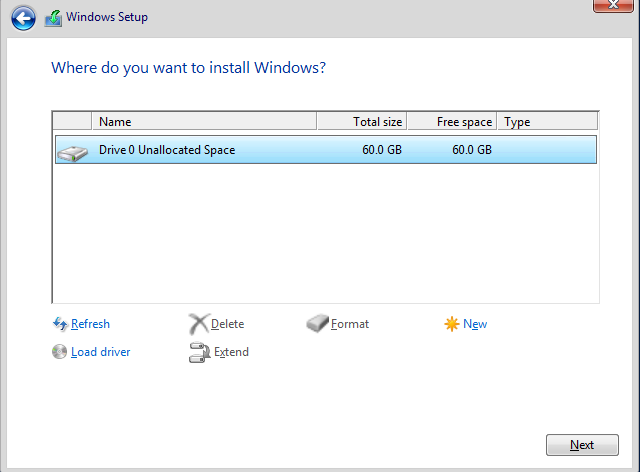

Click next


Create a password for administrator


NOTES:

In order to prevent confusion, i have renamed this virtual machine as 'DBZ-window server 2016' instead on window server 2016

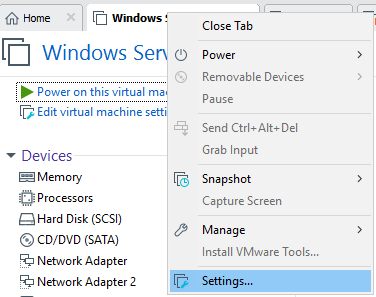

Right click on the virtual machine tab and click settings

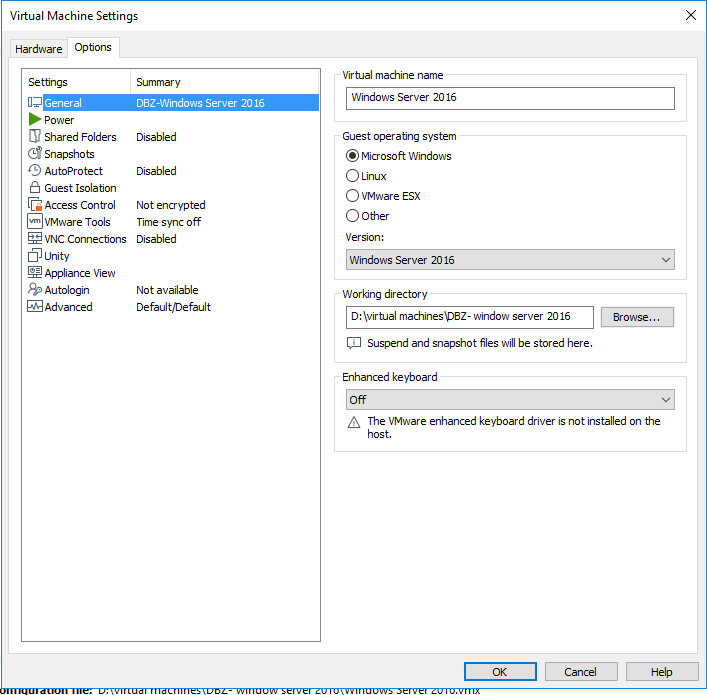

Click option tab

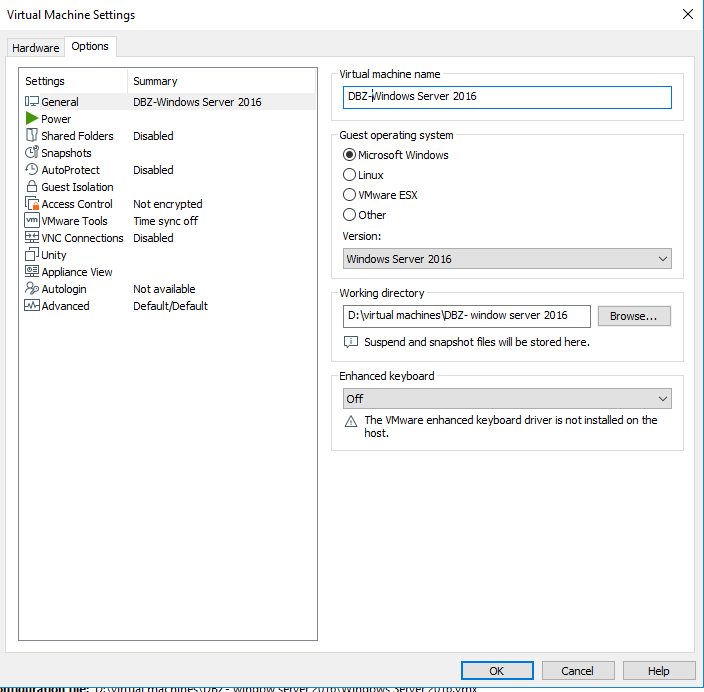

Rename this virtual machine as DBZ-window server 2016 and click ok
