INSTALLATION OF SERVICES (ADDC, DHCP and DNS) ON WINDOW SERVER 2016 IN MILITARIZED ZONE)

Before we start to install services as stated in the title, let us start to do some basic configuration such as set static IP address, hostname and create a domain (osicybertech.info) for militarized zone.

How to set computer name:

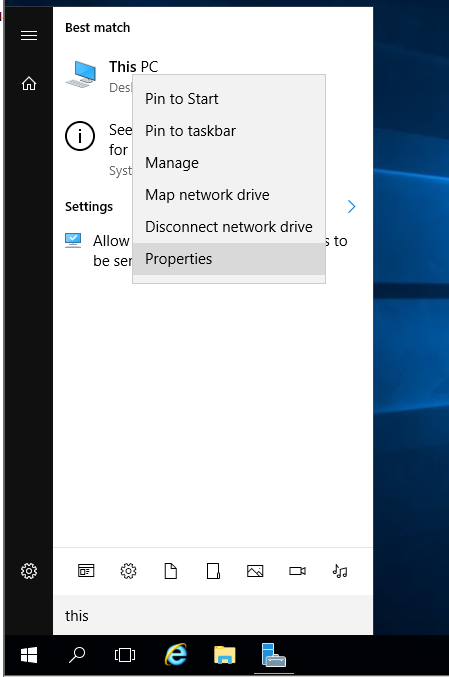

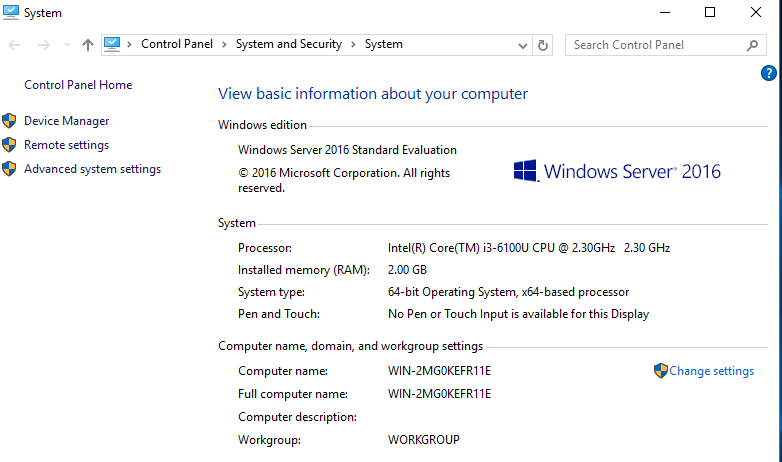

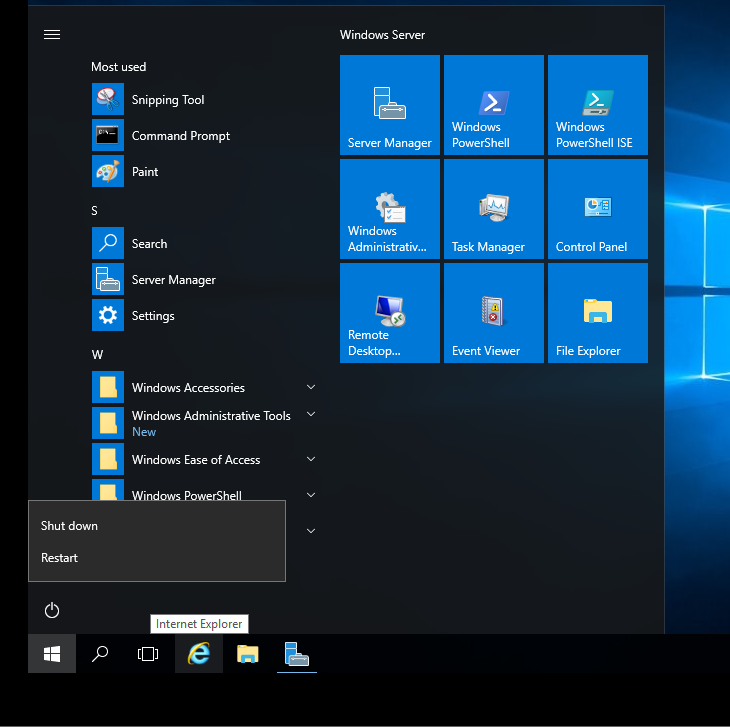

Open start menu, search for this pc, right click and click properties

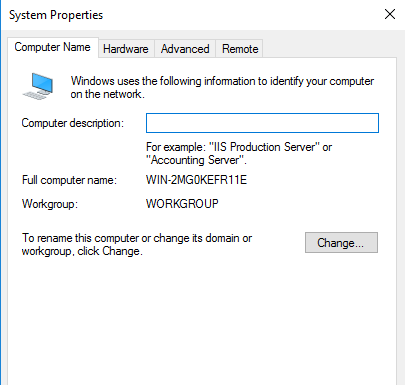

Click Change setting


click change


change computer name then click ok

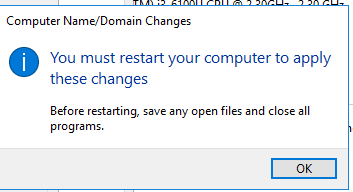

click ok


Click restart now

How to set static IP address:

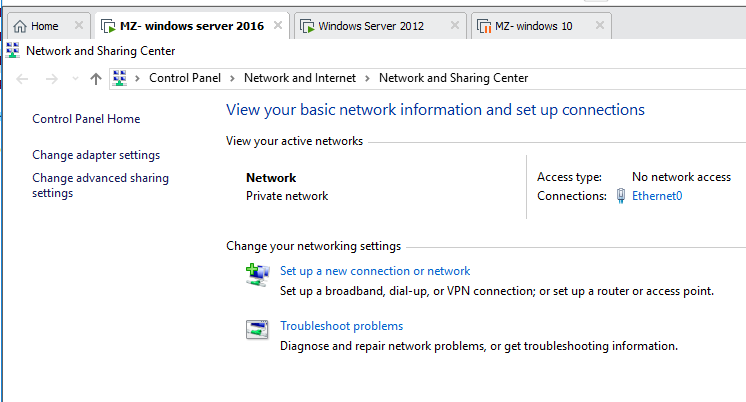

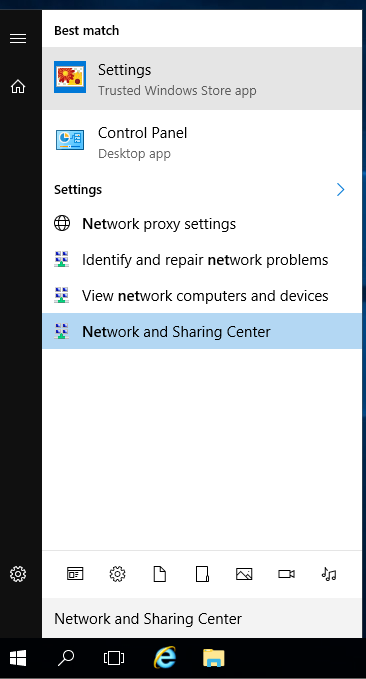

Open start menu, search for network and sharing center and open it


Click change adapter setting

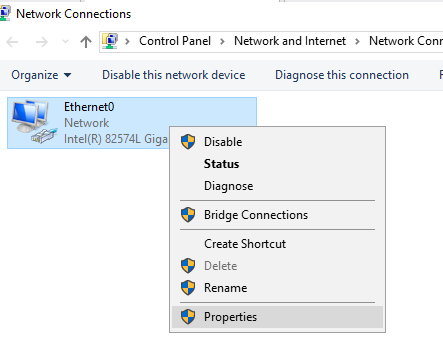

Right click on network adapter and click properties

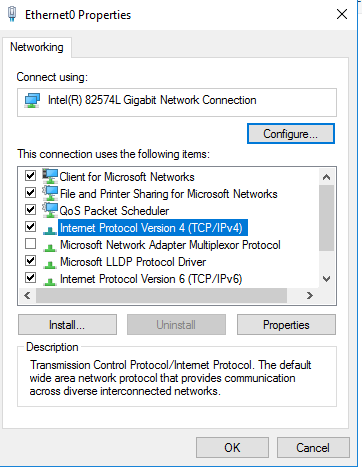

Double click internet protocol version 4(TCP/IPv4)


Change the setting as above and click ok

How to deploy domain controller (ADDC) and DNS:

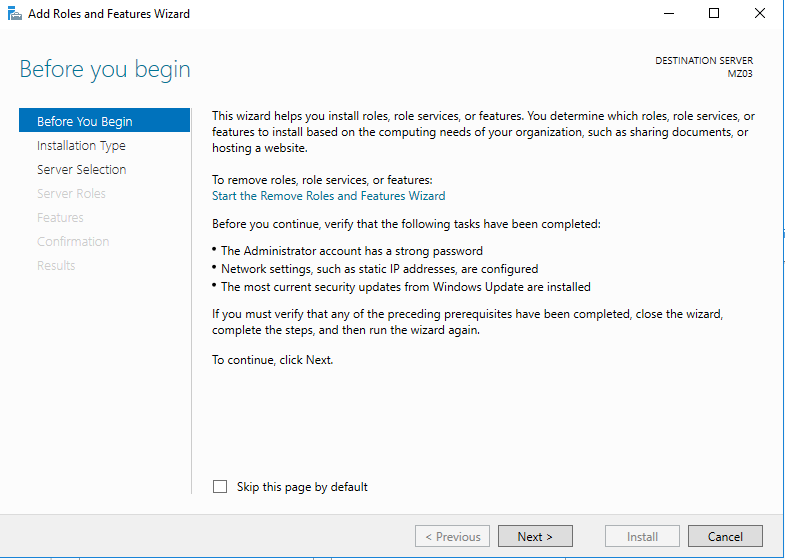

Click add roles and features

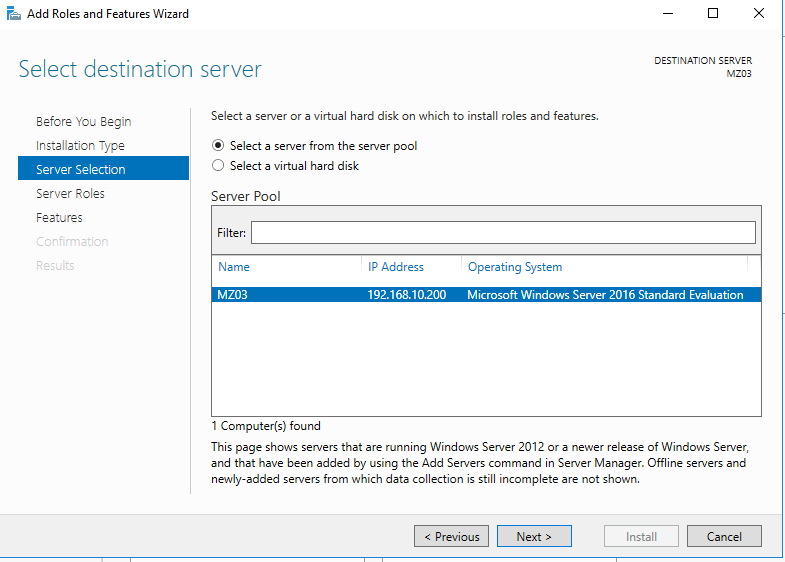

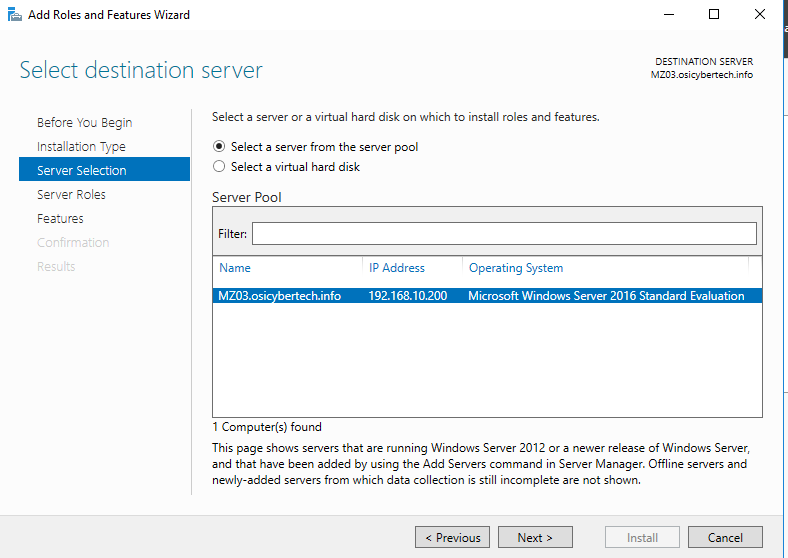

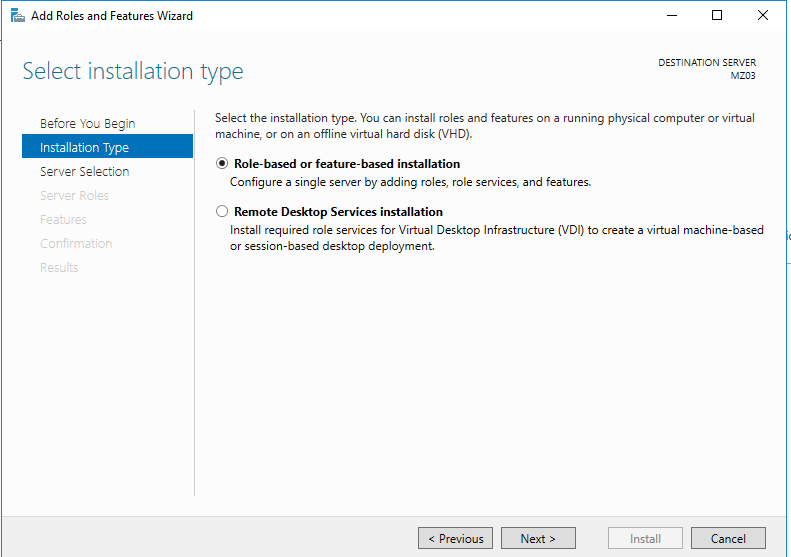

Click next


Click next


Click next

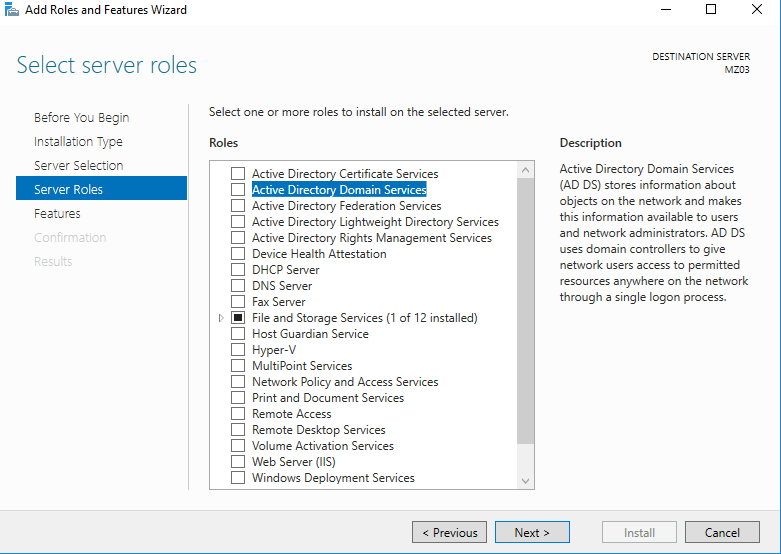

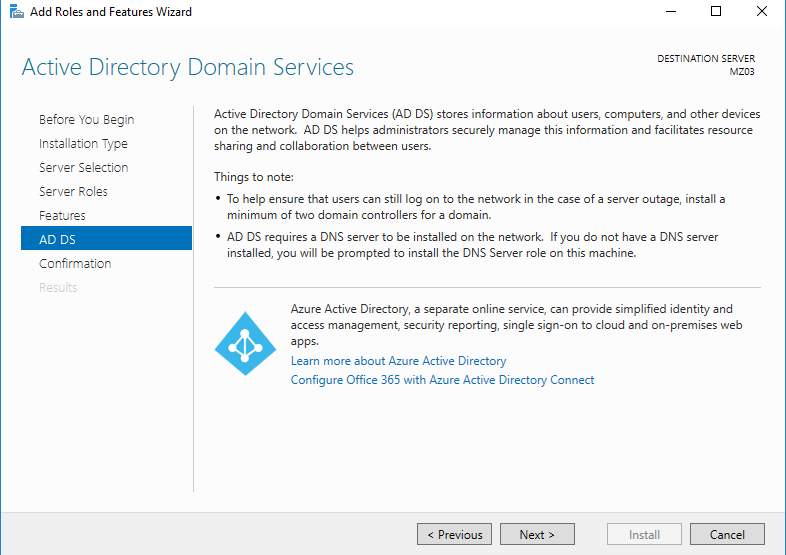

Tick active directory domain service

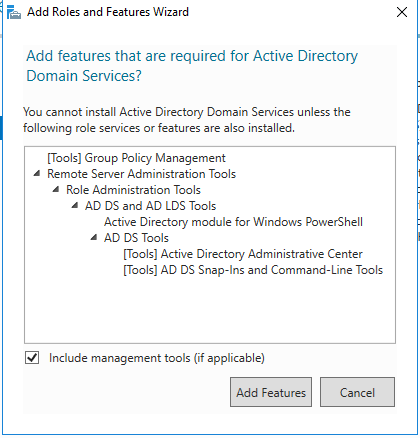

tick include managemenet tools then click Add Features

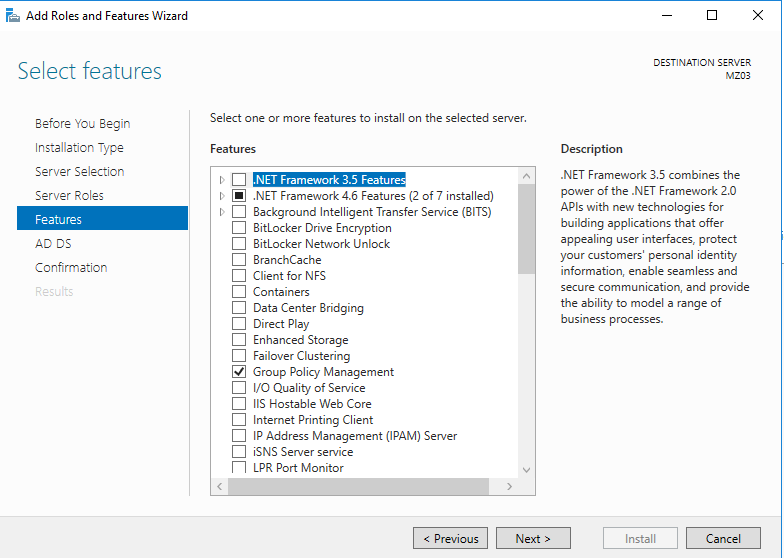

Click next


Click next


Click next

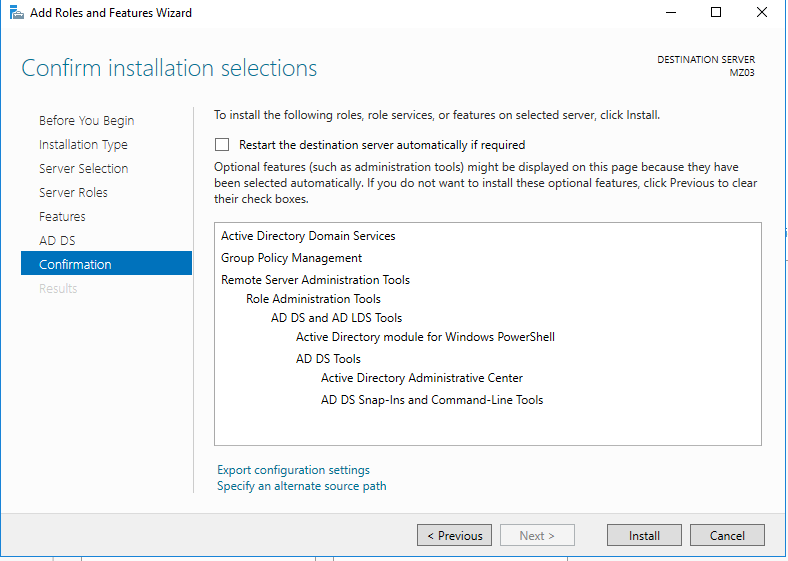

Click install


click close

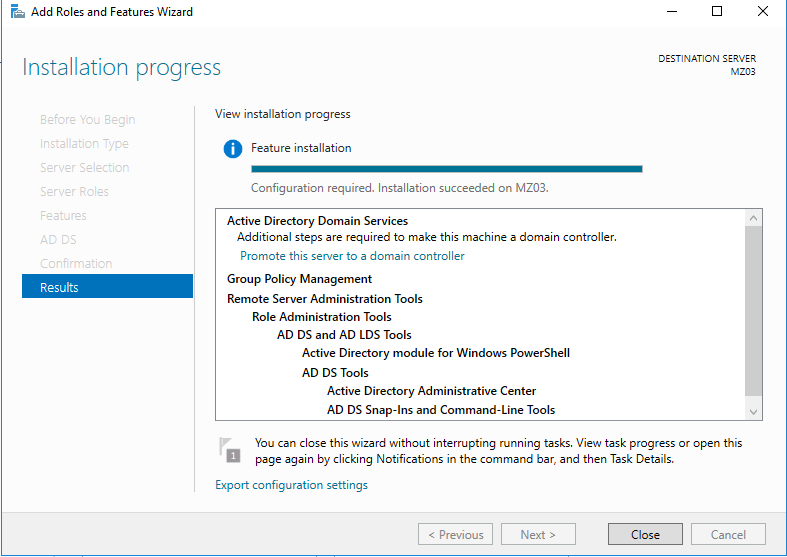

Click promote this server to a domain controller

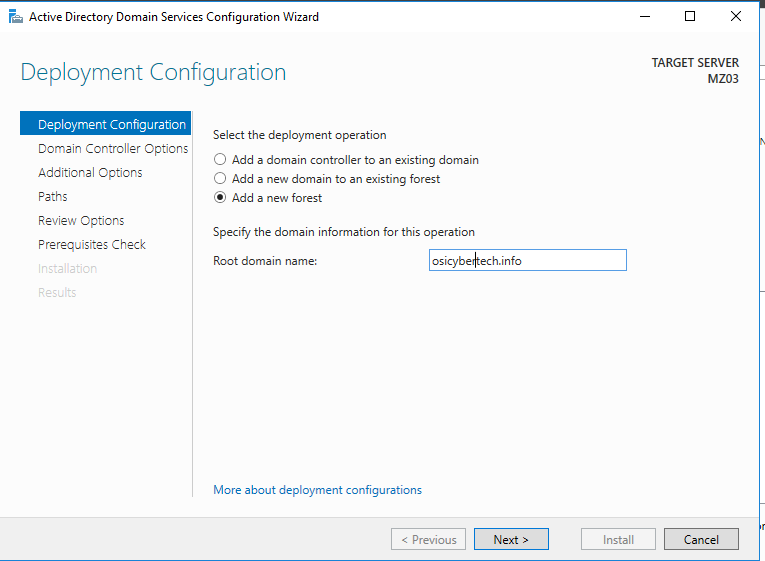

Key in domain for militarized zone, osicybertech.info and click next


Create a DSRM password for administrator account of the domain

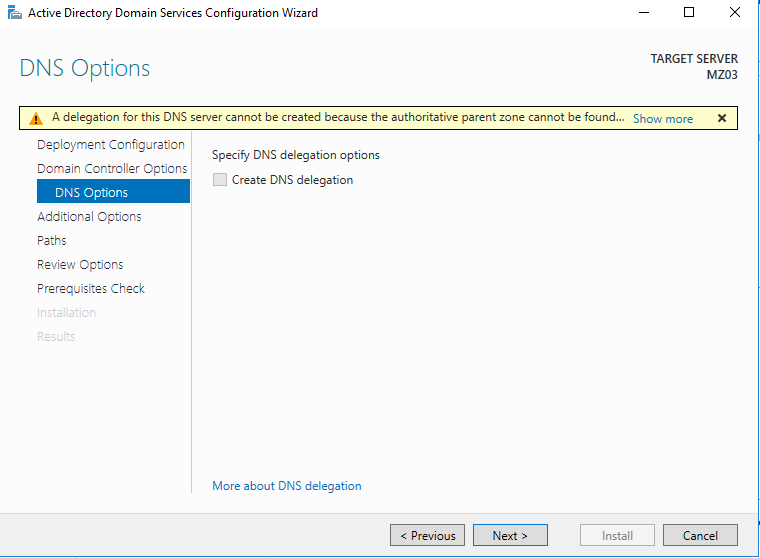

Click next.

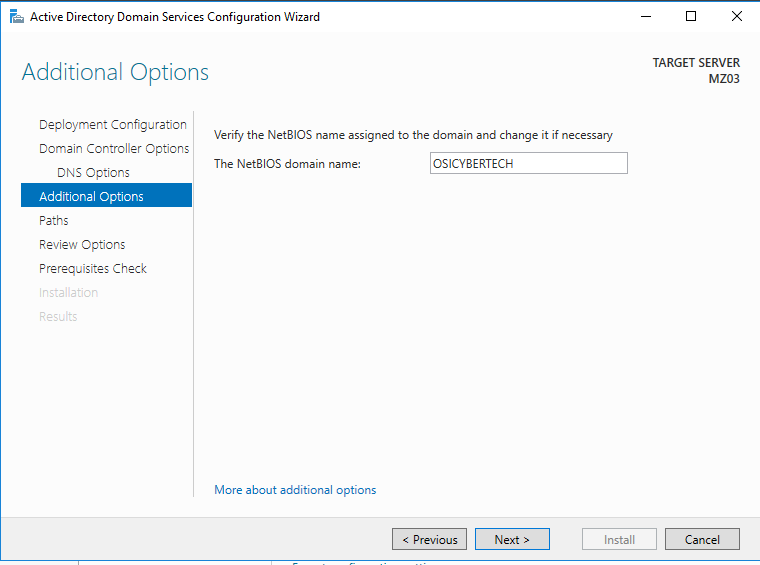

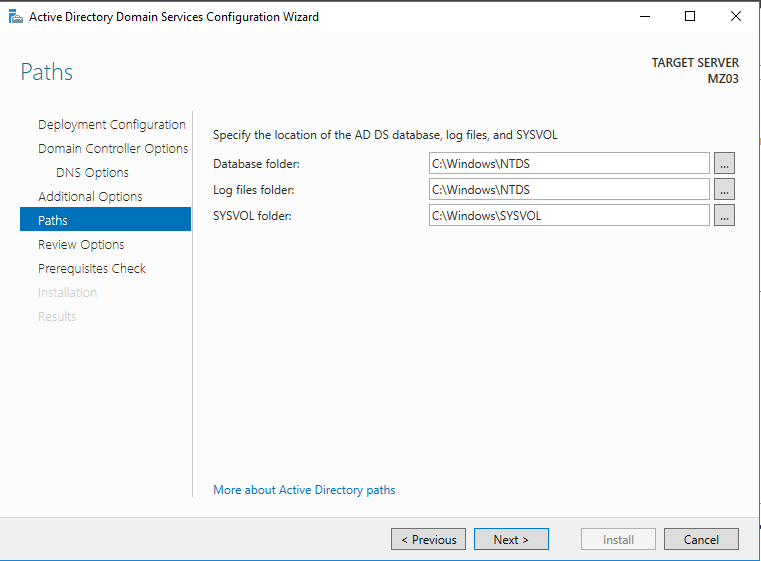

Click next


Click next


Click next

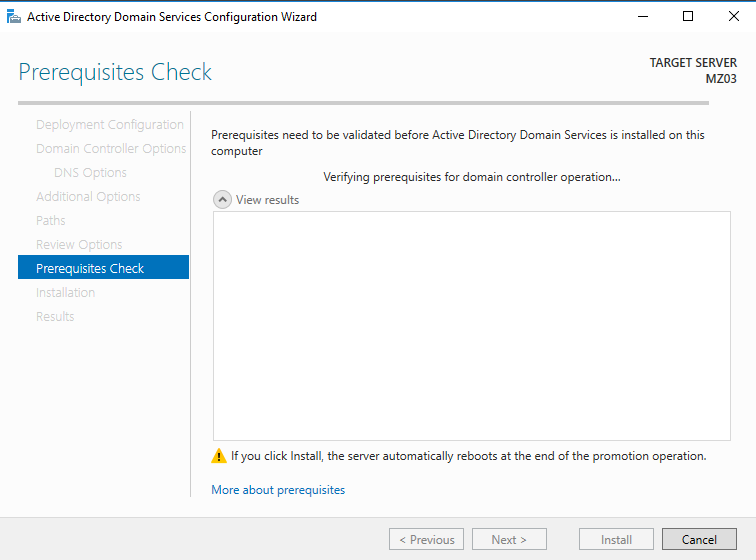

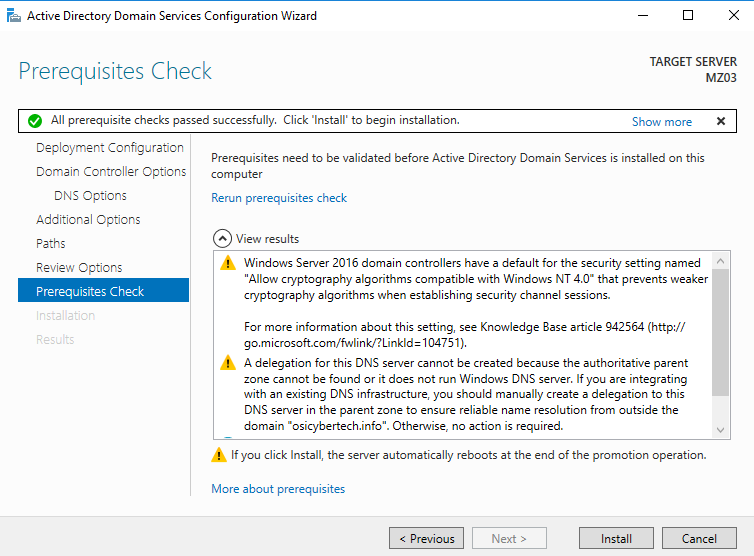

Wait for prerequisites check to complete


When it is done, click install


After that click close


the virtual machine will restart


How to configure forward and reverse zone on DNS:

Open server manager

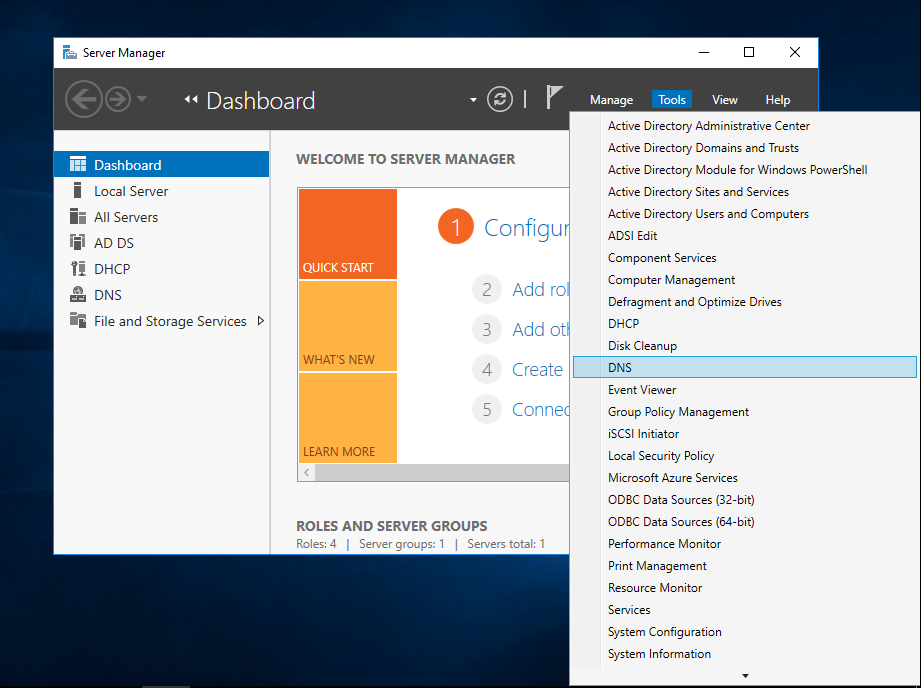

Click tools on top right and click DNS

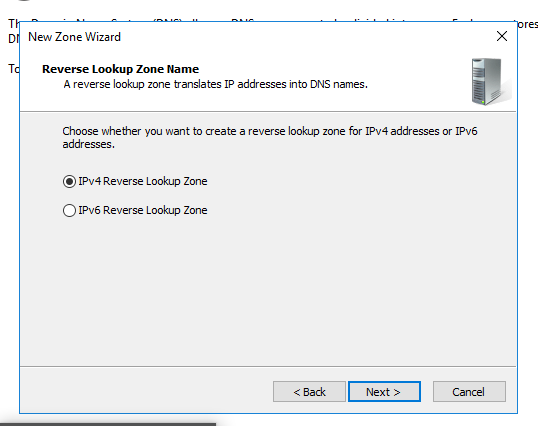

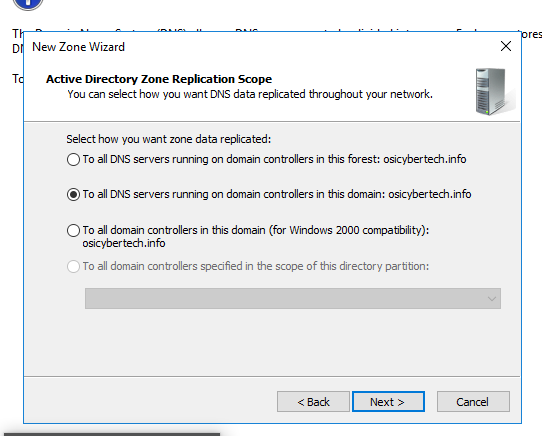

Right click on reverse lookup and click new zone


Click next


Tick primary zone and click next


Click next


Click next

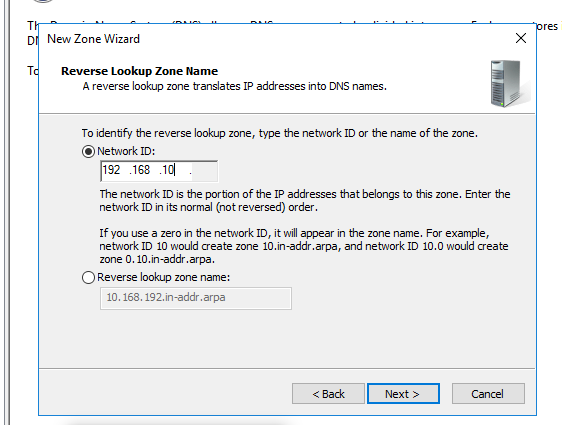

Key in the network ID as 192.168.10. as the network of militarized zone is 192.168.10.xx then click next

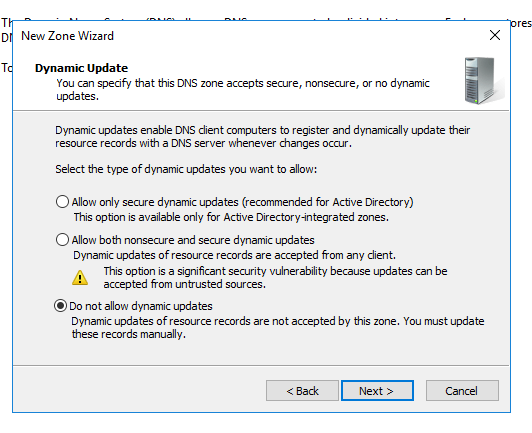

Tick do no allow dynamic update and click next

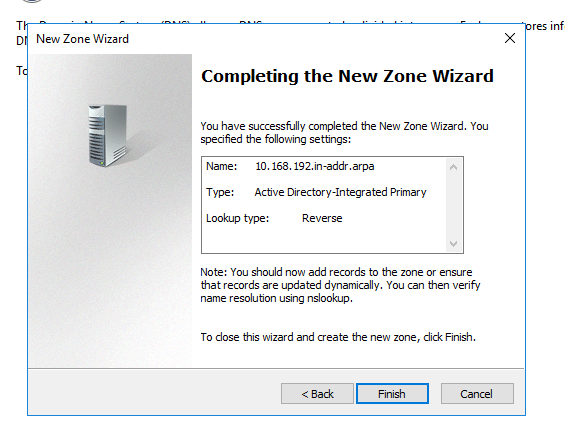

Click finish

How to set forward lookup zone:

On DNS manager, click on forward lookup zone, and double click on our domain which is osicybertech.info

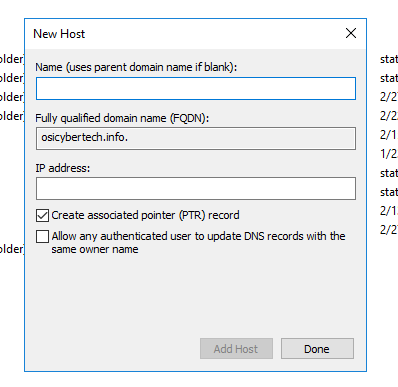

right click and click new host(A & AAA)

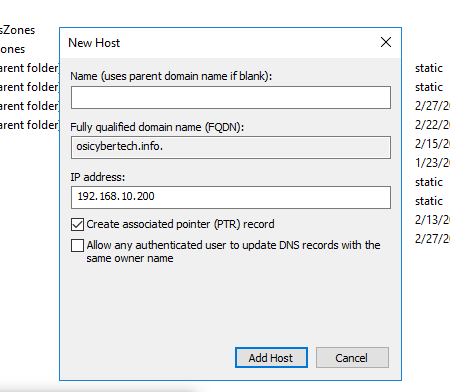

Key in IP address of MZ-window server 2016, tick create associated pointer (PTR) record and click add host.

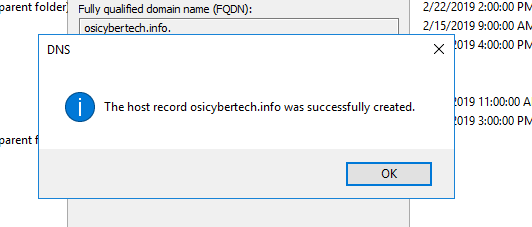

click ok


Click done

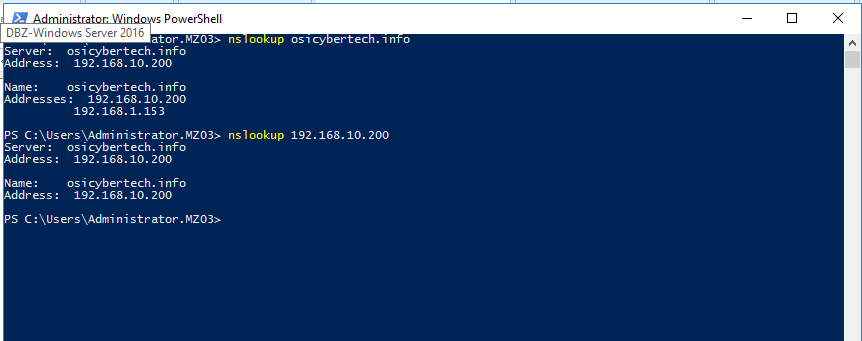

Open powershell, try to do nslookup on domain and IP address to check whether the forward and reverse zone is configure correctly.

How to set DHCP server:

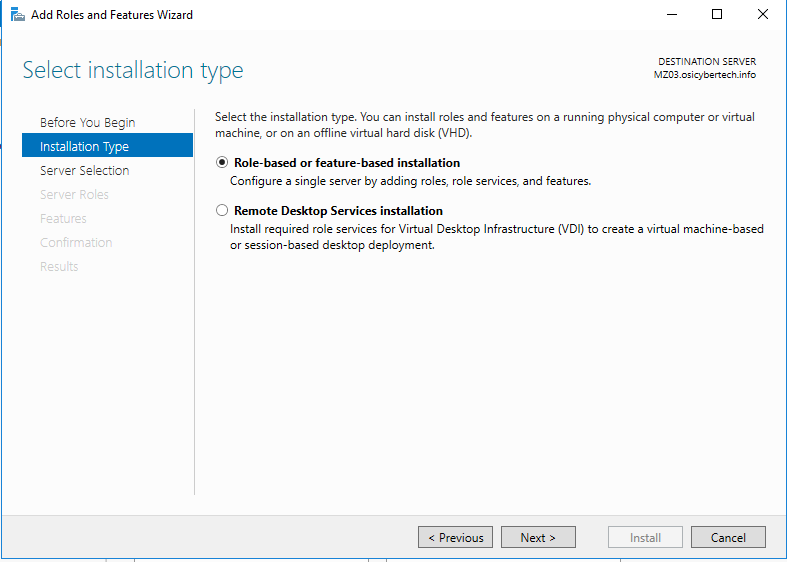

Open server manager, click add roles and features


click next


click next


Click next

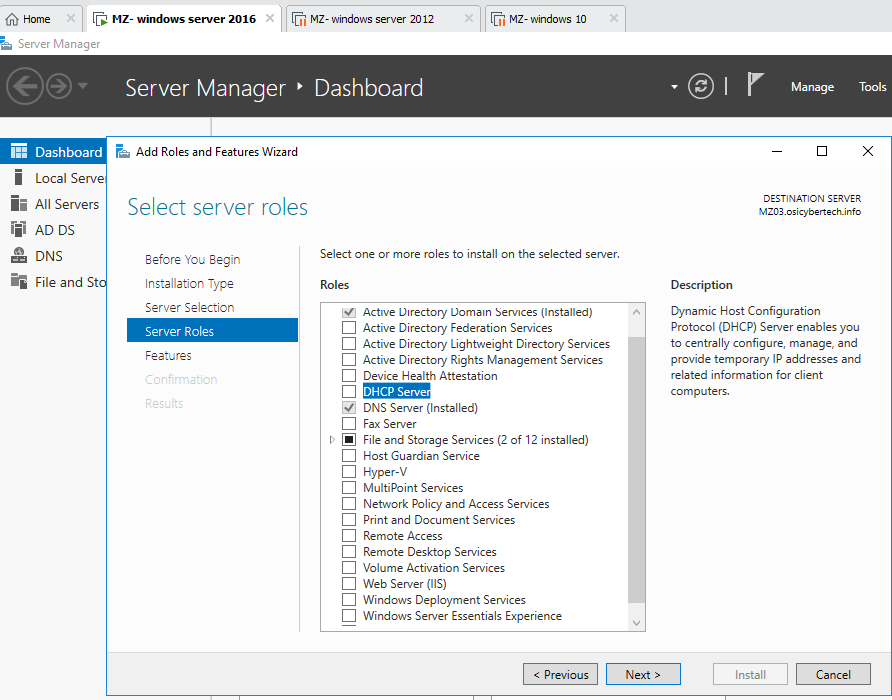

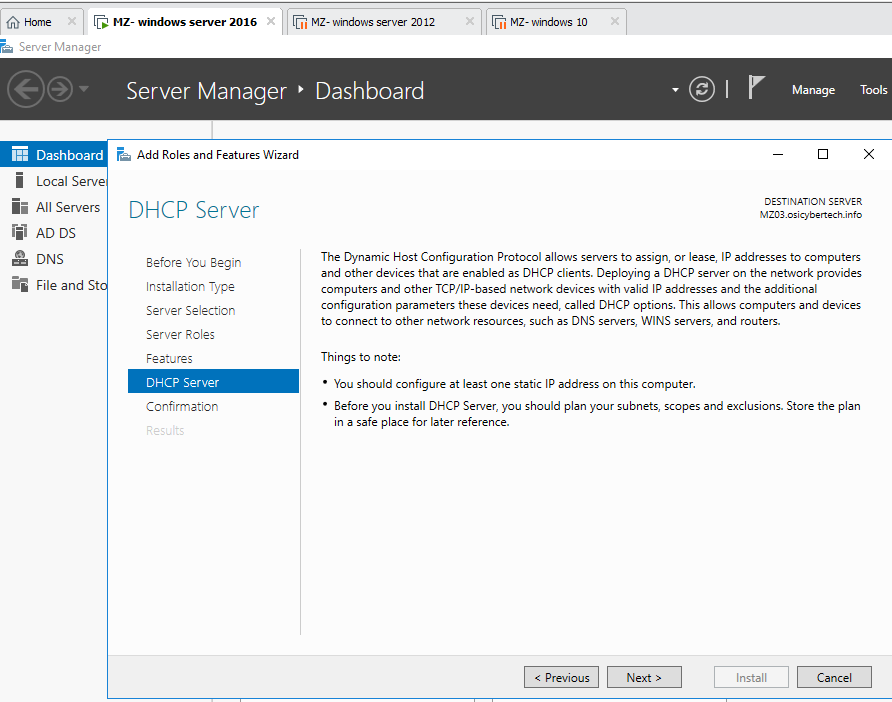

Tick DHCP Server

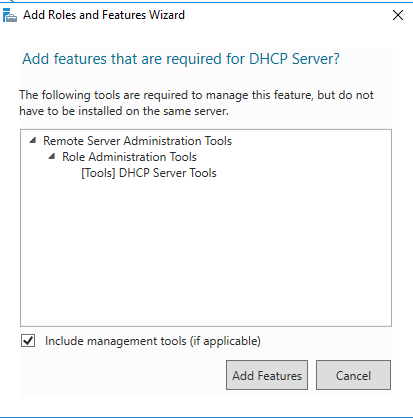

Click Add Features


click next


click next


click install


click close

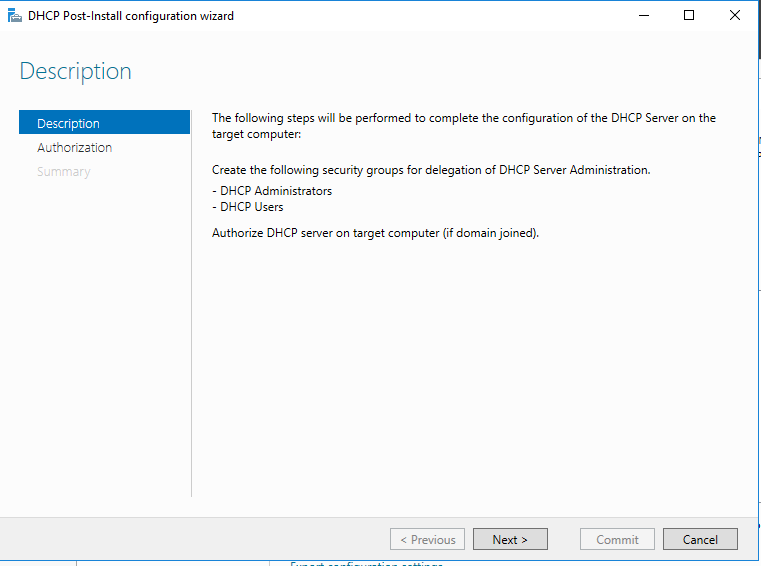

Click next

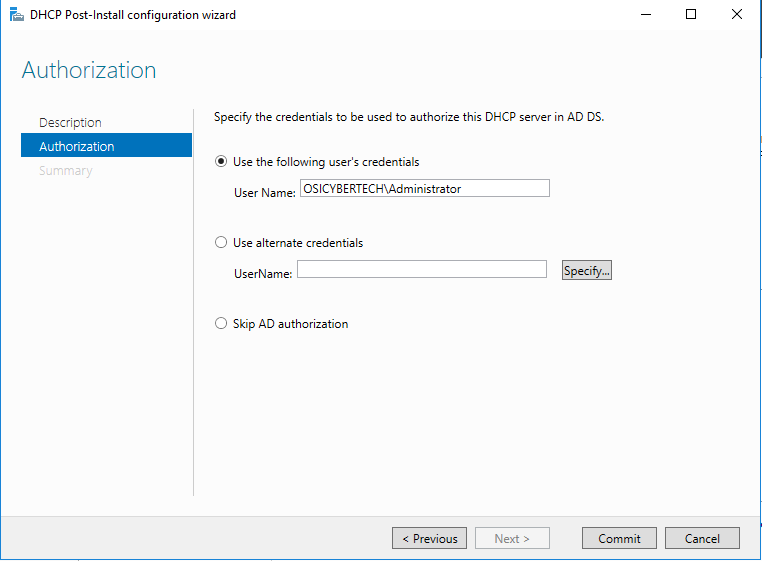

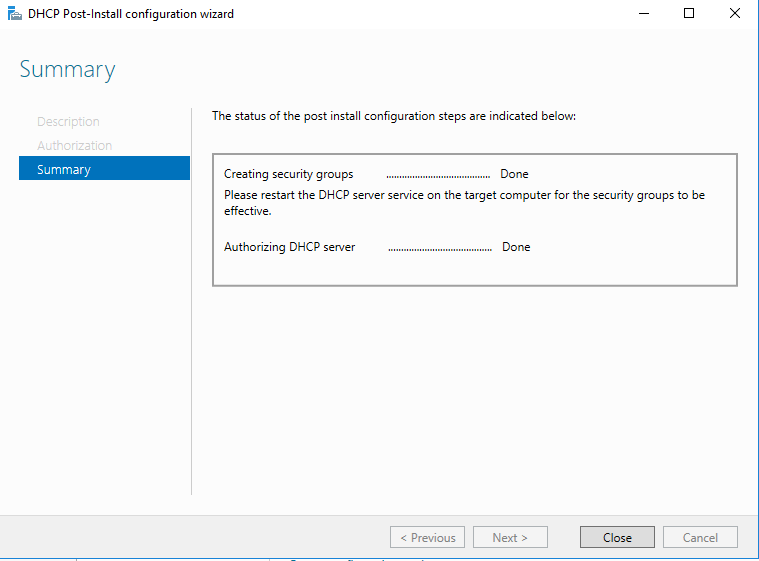

click commit


click close


Click close

How to set DHCP scope:

open server manager, click tools on top right and click DHCP

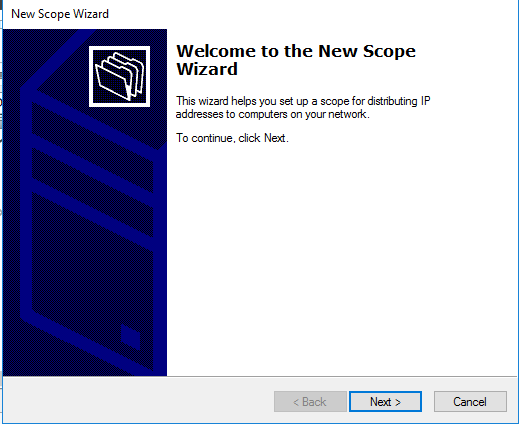

right click IPv4 and click new scope


click next

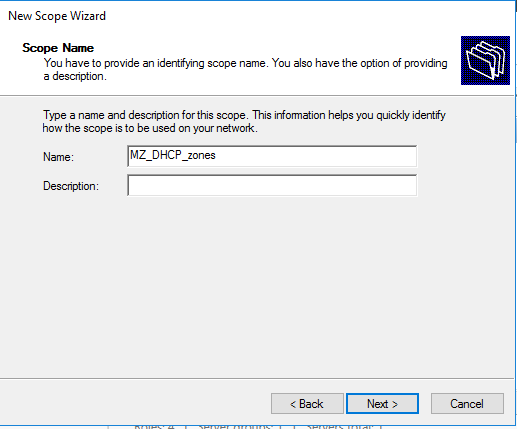

named this scope then click next

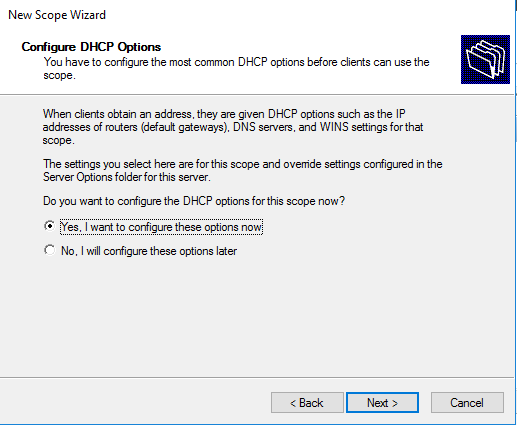

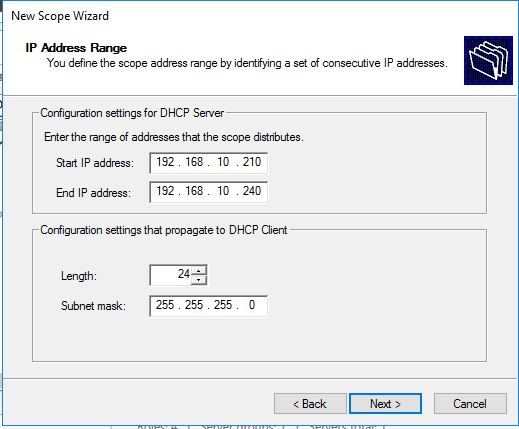

configure as above

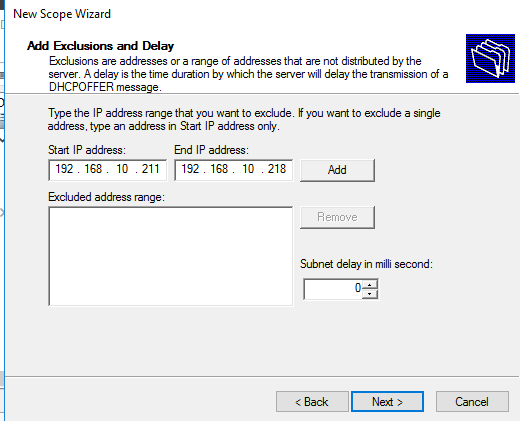

add range of IP that wish to exclude from DHCP server

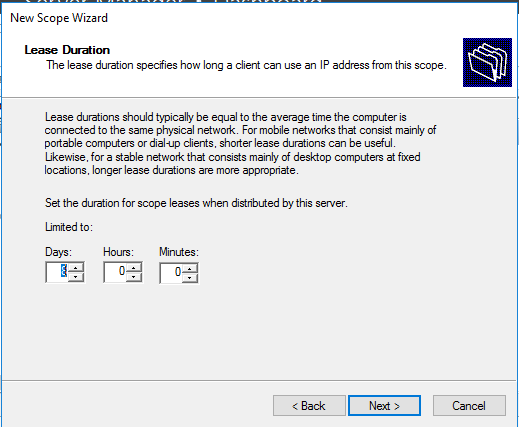

set lease duration(how often will DHCP server reassign IP address to connected device) then click next


click next


click finish

How to install container:

open server manager, click add roles and features, then click next


click next


click next


click next

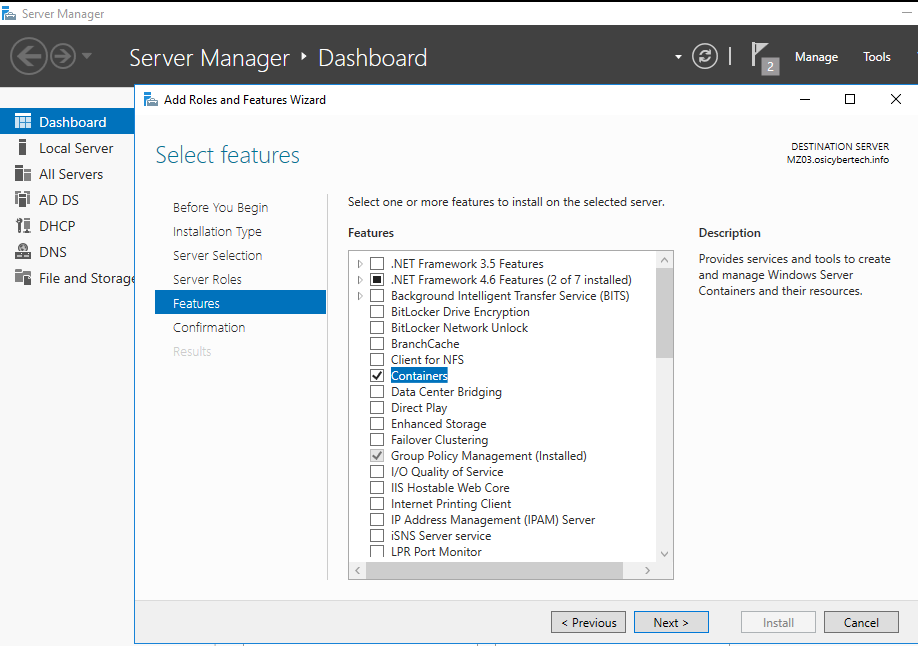

tick container then click next


click install


click close


Restart the VM
