Simple Step Create a snapshot of AD DS in Windows Server 2012 R2 by using NTDSUTIL

Hi all,

Today lets go through a very simple step today on how to create a snapshot of AD DS in Windows Server 2012 R2...


But 1st, what's snapshot and what's NTDSUTIL?


NTDSUtil in Windows Server 2012 can create and mount snapshots of AD DS.


A snapshot is a form of historical backup that captures the exact state of the directory service at the time of the snapshot.


You can use tools to explore the contents of a snapshot to examine the state of the directory service at the time the snapshot was made, or connect to a mounted snapshot with LDIFDE and export a reimport objects into AD DS.


For this short demo, I use my DC01.comsys.local server.


Lets get started...


1 - On the domain server, which is my DC01.comsys.local, open command prompt and type ntdsutil and press enter...

2- Next, type snapshot and press enter...

3 - Next, type activate instance ntds and press Enter...

4 - Next, type create (this create command is to generate a snapshot of my AD) and press Enter...

5 - Next, make sure you copy the copy the GUID somewhere (highlight the GUID and then copy)...

6 - Next, type quit 2 times to exit from snapshot...

7 - Now, lets make some change to my ADDS by deleting 1 of my AD user, for this demo, I choose my user from Research department...


7.1- Once you deleted the user, you need to mount an Active Directory snapshot, and create a new instance so that later we can retrieve back the deleted user...

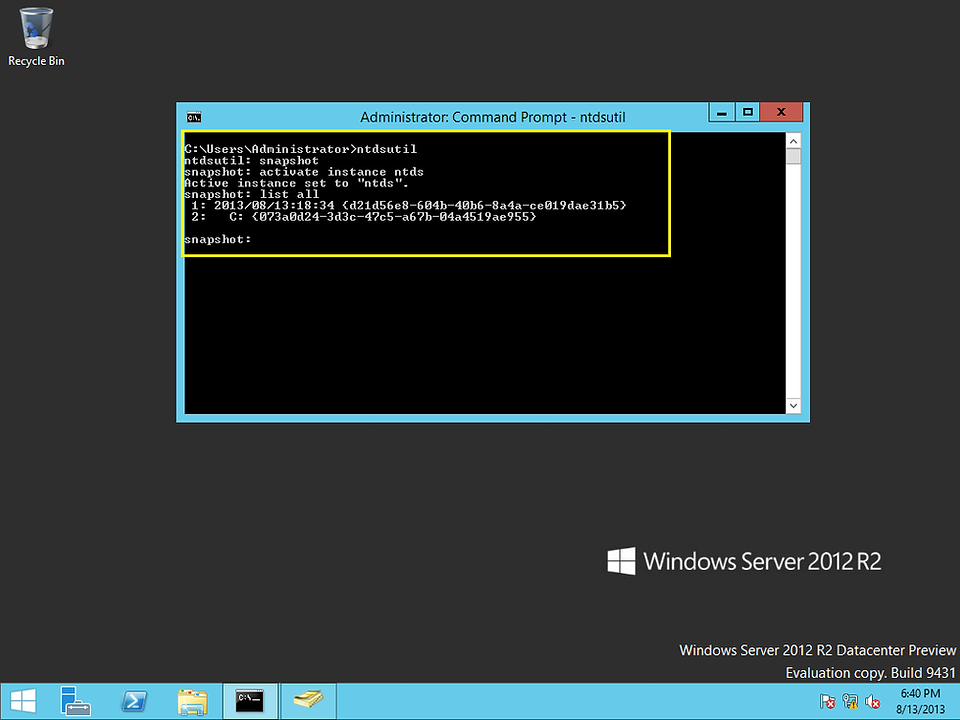

8 - in CMD, type ntdsutil, then snapshot, then type activate instance ntds, then type list all (please refer to my screen shot)...

9 - Next, you need to mount GUID no (please refer to my screen shot), type mount <GUID> no and press enter...

10 - once successful, exit the process by typing quit 2 times...

11 - Next, on the CMD, type dsamain /dbpath C:\$SNAP_datetime_volumec$\windows\ntds\ntds.dit /ldapport 50000

** be aware that datetime will be a unique value. There only should be one folder on your C:\ drive with a name that begins with $snap.

12 - Leave Dsamain.exe running, and do not close the CMD...

** A message indicates that Active Directory Domain Services startup is complete...

13 - Next, lets explore a snapshot with Active Directory Users and Computers, on the ADUC, right click Comsys.local and click Change Domain Controller...

14 - type DC01:50000 on the <Type a Directory Server name[:port] here>, then click OK...

15 - Next, browse to Research OU and you will notice that our deleted user is now back online...

16 - our last step is to unmount an Active Directory snapshot...

on the command prompt, press CTRL+C to stop DSAMain.exe...

17 - then wrap up the whole process, on the CMD, type :

ntdsutil snapshot activate instance ntds list all unmount guid (guid is the GUID of the snapshot) list all quit quit
